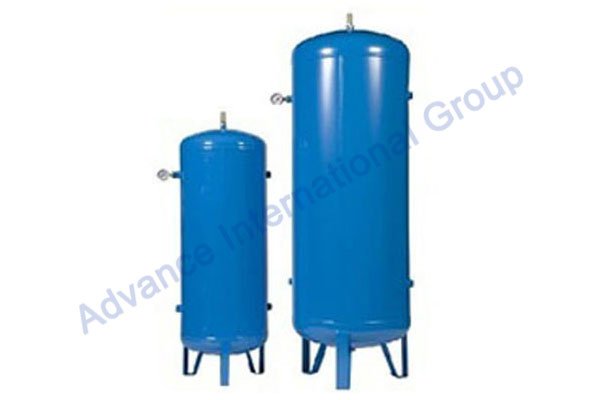

Air Receiver
It is used for air storage and constant air flow after the compressor to cater to sudden peak air requirement of the plant and keep emergency storage of air during power failures. We manufacture air receiver for different capacities of volume and pressure but standard pressure 150 psig. High pressure air receiver is available on request. Galvanized air receivers can also be provided on request. Air Receiver is essential to every compressed air system to act as a buffer and storage medium between the compressor and consumption system. Radiography and ultrasonic testing for high pressure vessels can also be undertaken as per requirements.
Application: -
- Service Industries
- Power Generation
- General Manufacturer
- Energy Storage for Air Compressor
- Gas Storage
- Vehicle Propulsion
- Pneumatics Service
- ETP Unit
- Mining
Product Details: -
| 1 | Make | Advance |
| 2 | Tank Orientation | Vertical & Horizontal |
| 3 | Storage Capacity | 200 ltr. To 10,000 ltr. (0.2 m3 to 10 m3) |
| 4 | Pressure Rating | 3 Kg/cm2 to 70 Kg/cm2 |
| 5 | Application / Usage | Air Compressor and Plant |
| 6 | Material of Construction | MS, SS (SS304/316) As per IS 206/SA516 |
| 7 | Code of Construction | ASME Sec- VIII, DIV -I / IS 2825 |
| 8 | Colour | Blue, Snow Grey, White and Black |
| 9 | Storage Material | Compressed Air / Gas |
| 10 | Paint Coating | Epoxy / Enamel (Outside), Bitumen (Inside), Rubber Lining (Optional) |
| 11 | Shell Thickness | 3 mm to 25 mm |
| 12 | Disc Thickness | 5 mm to 25 mm |
| 13 | Main Hole | Provided for cleaning purpose |
| 14 | Inlet / Outlet Connection | Flange Upto #600 & BSP Thread |
| 15 | Mounting | Saddle, Piped Legs, Channel legs as required |
| 16 | Hydraulic Testing | 1.5 Times of working pressure |
| 17 | Accessories (Optional) | Safety Valve, Auto Drain Valve/Manual Drain Valve, Pressure Gauge, All necessary Fittings |
